Platinum RTD's
  • Resistances from 100 to 1000 ohms at 25°C
  • Temperature Range -70°C to +600°C
  • Can be welded, brazed or soldered
  • Can be provided with extension lead wires
  • Other resistance values, materials available
 RTD Elements

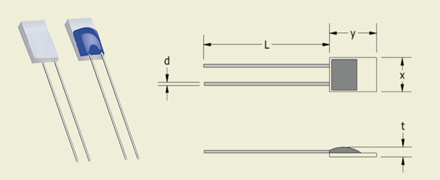

Thin Film Platinum RTD Elements
RTD Type Res. At 0°C
(ohms)		 T.C.R.¹
(ppm/K)		 Chip Size
(mm)		 Thick.
(t) (mm)		 Wire diam
(d) (mm)		 Length
(L) (mm)		 Wire type Max Temp
(°C)
RPT1002MPDF 100 3,850 2.1 x 2.3 0.9 0.20 10 PtNi 500
RPT5002MPDF 500 3,850 2.1 x 3.9 0.9 0.20 10 PtNi 500
RPT1003MPDF 1,000 3,850 2.1 x 2.3 0.9 0.20 10 PtNi 500
RPT1002LPDF 100 3,850 1.9 x 2.3 1.0 0.25 10 AgPd 400
RPT1003LPDF 1,000 3,850 1.9 x 2.3 1.0 0.25 10 AgPd 400
RPT1002GPDF 100 3,850 1.25 x 1.7 0.8 0.15 10 PtNi 500
RPT1003GPDF 1,000 3,850 1.25 x 1.7 0.8 0.15 10 PtNi 500
RPT1002RPDF 100 3,850 1.0 x 3.0 0.5 0.15 10 PtNi 500
RPT1003RPDF 1,000 3,850 1.0 x 3.0 0.5 0.15 10 PtNi 500
RPT1002HPDF 100 3,850 1.9 x 2.3 1.0 0.20 8 PtPd 600
RPT1003SPDF 1,000 3,750 2.1 x 2.3 0.9 0.20 8 PtNi 500
