Demonstration Units

Portable demonstration units from MCS — self-contained kits pairing NitroMag and Magnum microprocessor controllers with keypad or 15.4″ touchscreen interfaces, perfect for sales demos, training classes, and engineering evaluations.

MCS-MAGNUM DEMO-12 MAGNUM-TOUCH-15.4-DEMO-12 MAGNUM TOUCH-15.4-KP-DEMO-12 MCS-NITROMAG-15.4-DEMO MCS-NITROMAG-15.4-DEMO-MINI

Made in the USA

Ready-to-run out of the box

Training and sales demos

MCS-MAGNUM DEMO-12

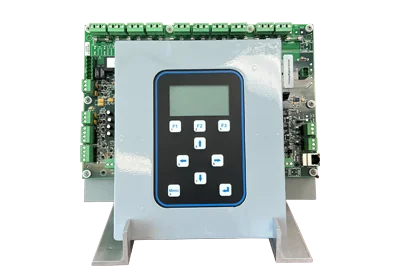

MCS-MAGNUM-DEMO-12

documentation

---

Description

The MAGNUM-DEMO-12 is a complete demonstration unit featuring a MAGNUM microcontroller mounted on a backplane, integrated with a standalone keypad and display perfect for showcasing functionality and ease of use.

---

Spec Sheets

MCS-MAGNUM-DEMO-12

Close

MAGNUM-TOUCH-15.4
DEMO-12

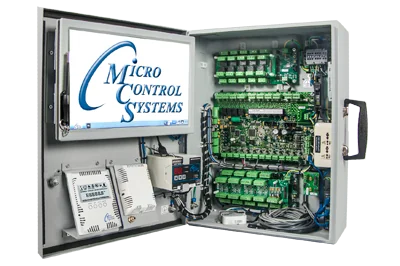

MAGNUM-TOUCH-15.4-DEMO-12

documentation

---

Description

The MAGNUM-TOUCH-15.4-DEMO-12 demo unit includes a MAGNUM microcontroller, along with the following components: MCS-RO-BASE, MCS-RO-EXT, MCS-SI-BASE, and MCS-SI-EXT expansion boards, as well as a MCS-TOUCH-15.4 touchscreen display. The unit also comes pre-installed with a MCS-EXV DRIVER, MCS-500 Transducer with cable, MCS-THERMOSTAT, MCS-ZONE, MCS-CT300, MCS-T100, and a MCS-POCKET ROUTER.

---

Spec Sheets

MCS-MAGNUM-TOUCH-15.4-DEMO-12

Close

MAGNUM TOUCH-15.4-KP DEMO-12

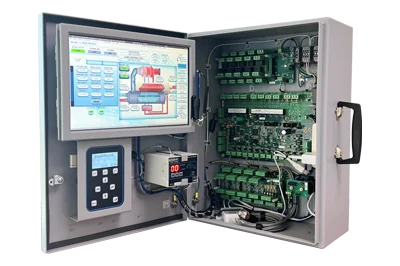

MAGNUM-TOUCH-15.4-KP-DEMO-12

documentation

---

Description

The MAGNUM-TOUCH-15.4-KP-DEMO-12 demo unit includes a MAGNUM microcontroller, along with the MCS-RO-BASE, MCS-RO-EXT, MCS-SI-BASE, and MCS-SI-EXT expansion boards. It is also equipped with a 15.4” MCS-TOUCH display. Additionally, the unit features an MCS-EXV DRIVER, MCS-500 Transducer with cable, MCS-ZONE, MCS-CT300, MCS-POCKET ROUTER, and an MCS-T100.

---

Spec Sheets

MCS-SHIELDWIRE-GROUNDING-KIT Spec Sheet

Close

MCS-NITROMAG-15.4
DEMO

MCS-NITROMAG-15.4-DEMO

documentation

---

Description

The MCS-NITROMAG-15.4-DEMO system includes an MCS-NITROMAG-OEM controller connected to a 15.4″ capacitive touchscreen interface, along with MCS-IO-BASE and MCS-IO-EXT I/O expansion boards, MCS-SI-BASE and MCS-SI-EXT sensor input expansion boards, MCS-RO-BASE and MCS-RO-EXT relay output expansion boards, and an MCS-EXV Driver. The demo unit also includes an MCS-500C transducer with cable, an MCS-T100-20 temperature sensor, and an MCS-12V-90W power supply, so you can evaluate the system hardware and test a variety of software setups in-house. The MCS-CONNECT software package is preinstalled, providing remote communication, graphing, and more.

---

Spec Sheets

MCS-NITROMAG-15.4-DEMO Spec Sheet

Close

MCS-NITROMAG-15.4
DEMO-MINI

MCS-NITROMAG-15.4-DEMO-MINI

documentation

---

Description

The MCS-NITROMAG-15.4-DEMO-MINI system includes the MCS-NITROMAG-15.4, MCS-IO-BASE and MCS-IO-EXT I/O modules, MCS-EXV-Driver, MCS-12V-90W power supply, MCS-ETHERNET-SWITCH, and an MCS-NITROMAG-DOOR with a 12VDC power supply. The demo unit also includes an MCS-200C transducer with cable and an MCS-T100-20 temperature sensor, so you can evaluate the system hardware and test a variety of software setups in-house. The MCS-CONNECT software package is preinstalled, providing remote communication, graphing, and more.

---

Spec Sheets

MCS-NITROMAG-15.4-DEMO-MINI Spec Sheet
