Software

MCS-CONNECT

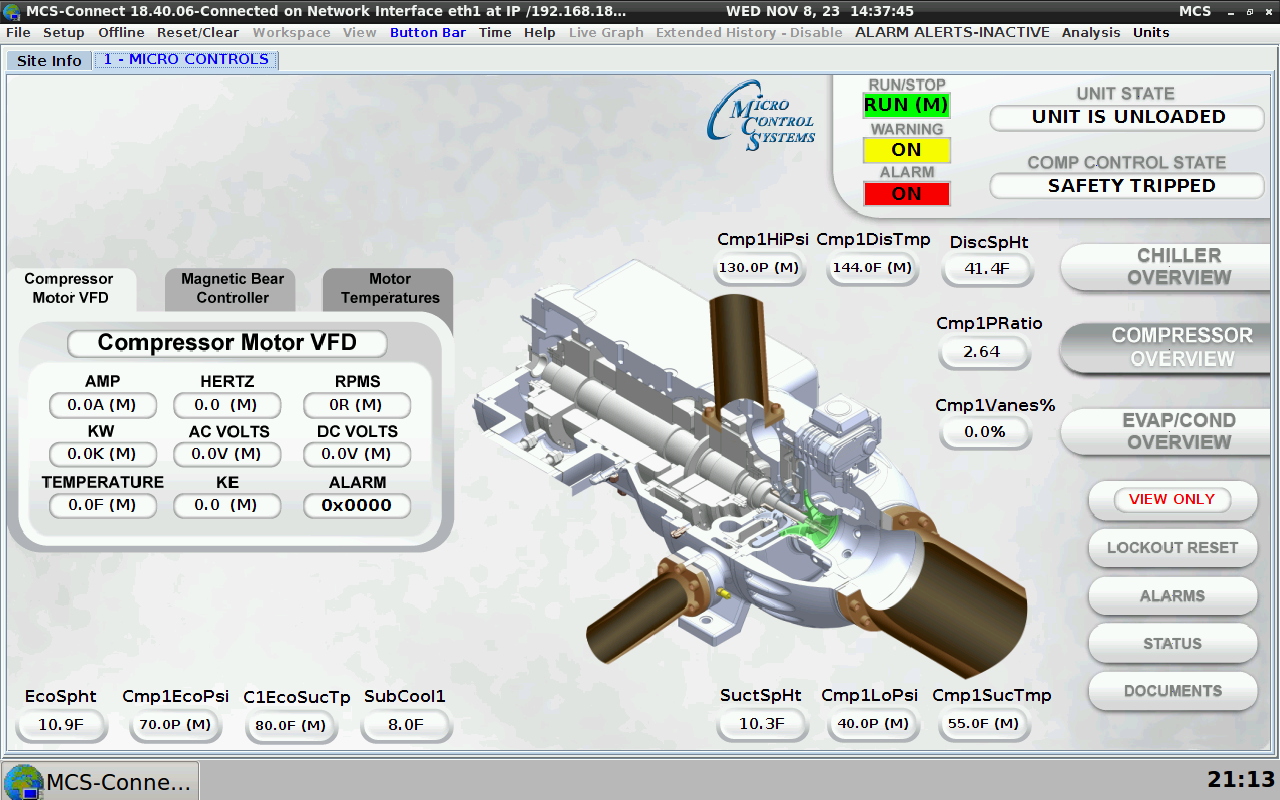

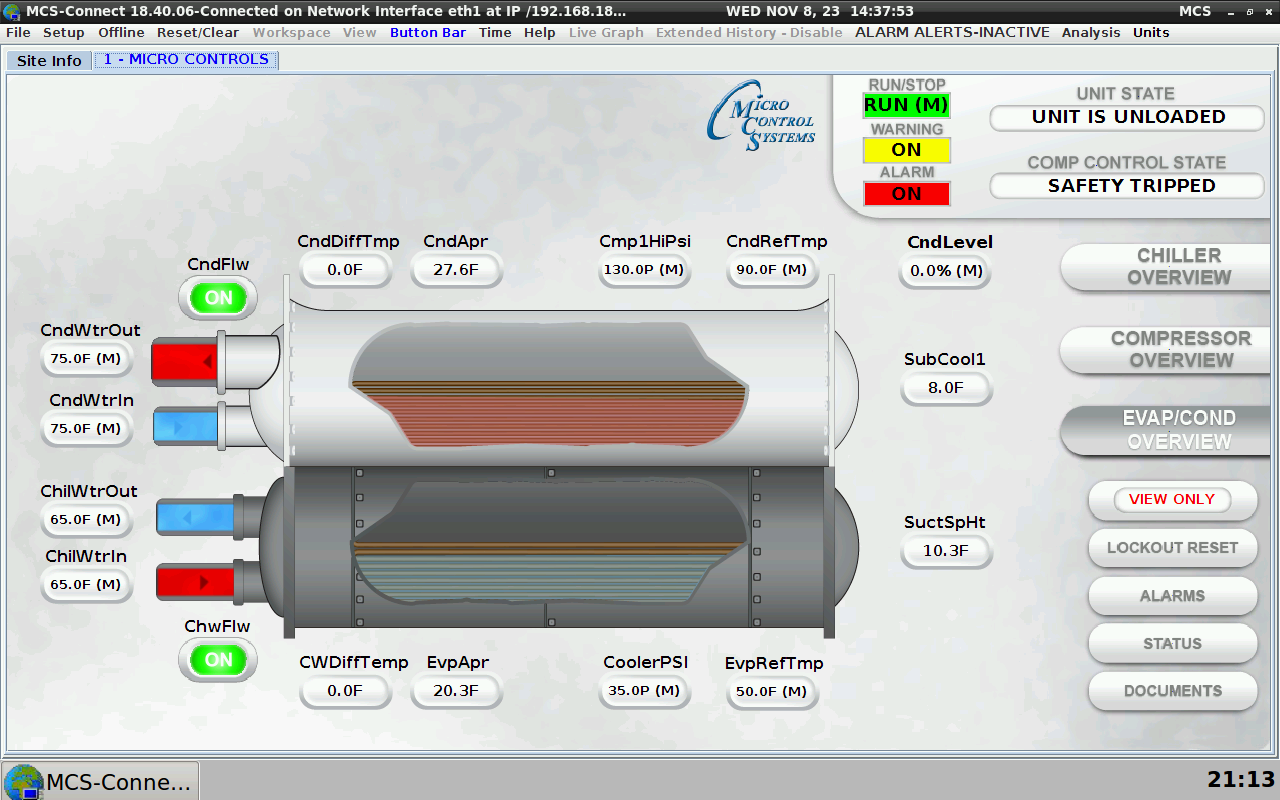

MCS-Connect main screen

Real-Time Microcontroller Monitoring and Configuration

MCS-CONNECT is a powerful platform designed for real-time microcontroller monitoring, control, and data visualization. It enables users to track system performance instantly and make authorized configuration changes with ease.

Configuration files can be securely transmitted to or from an MCS microcontroller in as little as 10 seconds, ensuring fast and efficient system updates.

A key feature is its advanced event history graphing capability. MCS controllers automatically log historical data, allowing users to select specific inputs or outputs and generate detailed graphs — viewable in real time or across a customizable time range for diagnostics, performance analysis, and decision-making.

MCS-Connect Spec Sheet MCS-Connect Manual MCS-Connect Release Notes

Downloads

Choose your platform

Windows
MCS-CONNECT

VIEW ONLY

The 'View Only' download will only display information from MCS-Controllers.

Latest stable
v19.01.21b · 64,335 KB
Download
Windows
MCS-CONNECT AUTH CODE

The 'Auth Code' download will display information from MCS-Controllers and, with proper authorization, allow modifying data.

Latest stable
v19.01.21b · 64,338 KB
Download

Please Note: The above versions of MCS-Connect graphics feature will only work correctly with MCS-Graphics version 3.0

MCS-CONNECT-LINUX: A Linux program that communicates with MCS-8, MCS-MAGNUM, and MCS-MicroMag micro controllers.

Linux
MCS-CONNECT LINUX
Latest stable
v19.01.21b · 14,567 KB
Download

MCS-CONNECT-LINUX YOCTO: A Linux program that communicates with MCS-8, MCS-MAGNUM, MCS-MicroMag, and MCS-NitroMag controllers.

Linux Yocto
MCS-CONNECT LINUX YOCTO
Latest stable
v19.01.21b · 14,625 KB
Download

Please Note: Each installer above is the latest official release and is a full install — no previous version required. Download (Save) the file to your computer or flash drive. For Linux and Yocto, move the installer to the touchscreen via network or flash drive, then run it and follow the on-screen instructions.

APP113 — Upgrading MCS-CONNECT on Touchscreen

MCS-TOUCH SOFTWARE

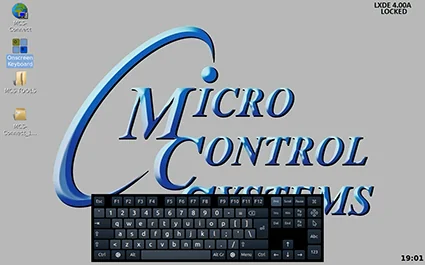

MCS-Touch device

MCS-Touch Software must be downloaded, extracted, and all files in the folder saved to a formatted Micro SD card. Once saved, the Micro SD can then be inserted into the Micro SD slot located on the board mounted to the back of the touch screen before powering on the MCS-Touch.

Software Packages

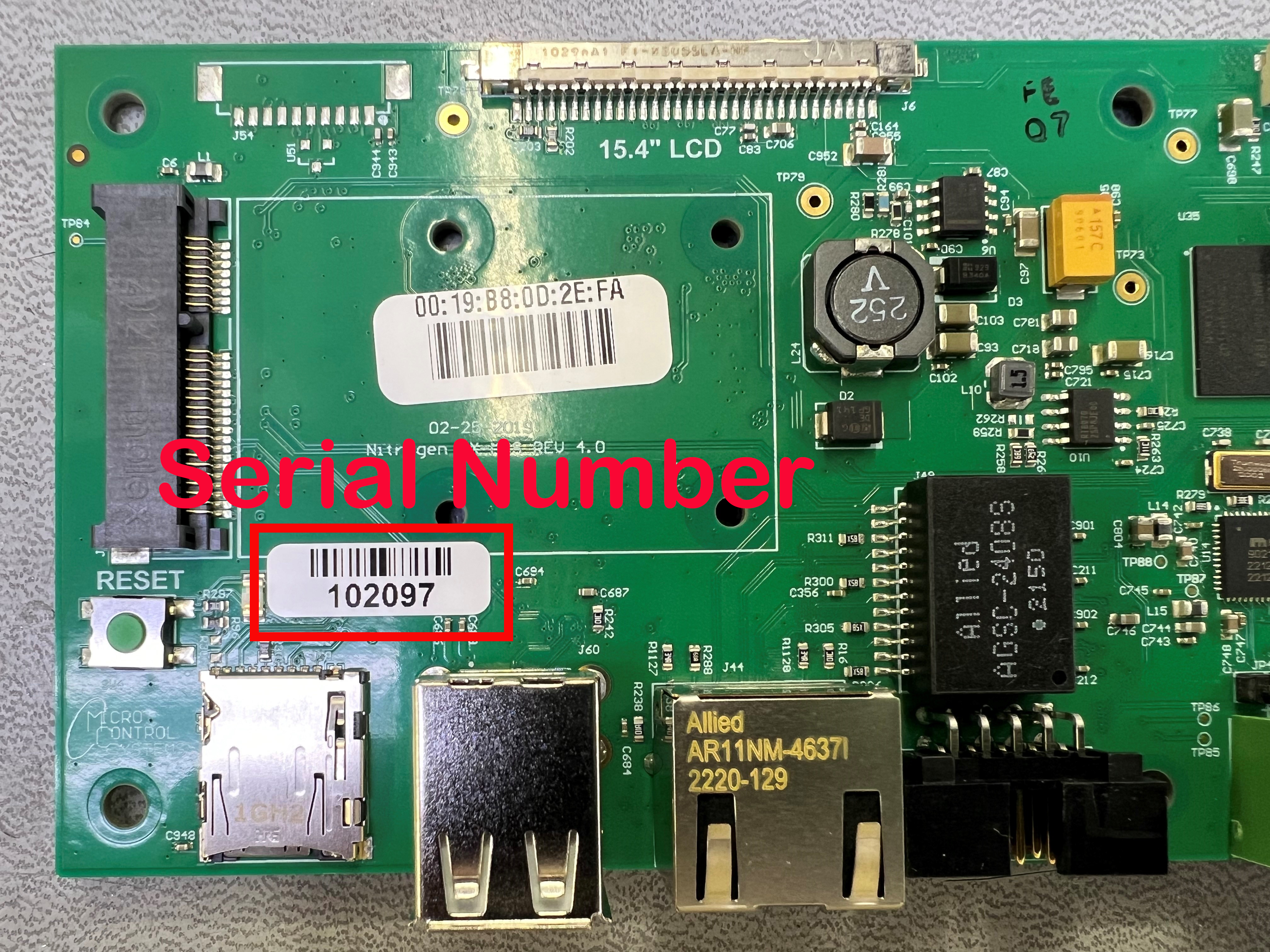

Please Note: Locate the Serial Number on your board and follow the installation procedure for proper deployment.

LATEST
MCS 2.1.5

Capacitive

Serial Numbers
102166 & Above
Size: 529,298 KB
Download
LXDE 4.00A

DUAL

Serial Numbers
100000 & Above
Size: 919,103 KB
Download
LXDE 3.00J

DUAL

Serial Numbers
107 & Above
Size: 969,572 KB
Download
LXDE 3.00J

SOLO

Serial Numbers
106 & Below
Size: 969,572 KB
Download
Required Tool
BelenaEtcher
Used to flash MCS-Touch SD cards / USB drives
Download
Installation Procedure

MCS-GRAPHICS BUILDER

MCS-Graphics is a feature of MCS-Connect that gives users a graphical interface to their controllers. A sample graphics screen and config are included to help you get started.

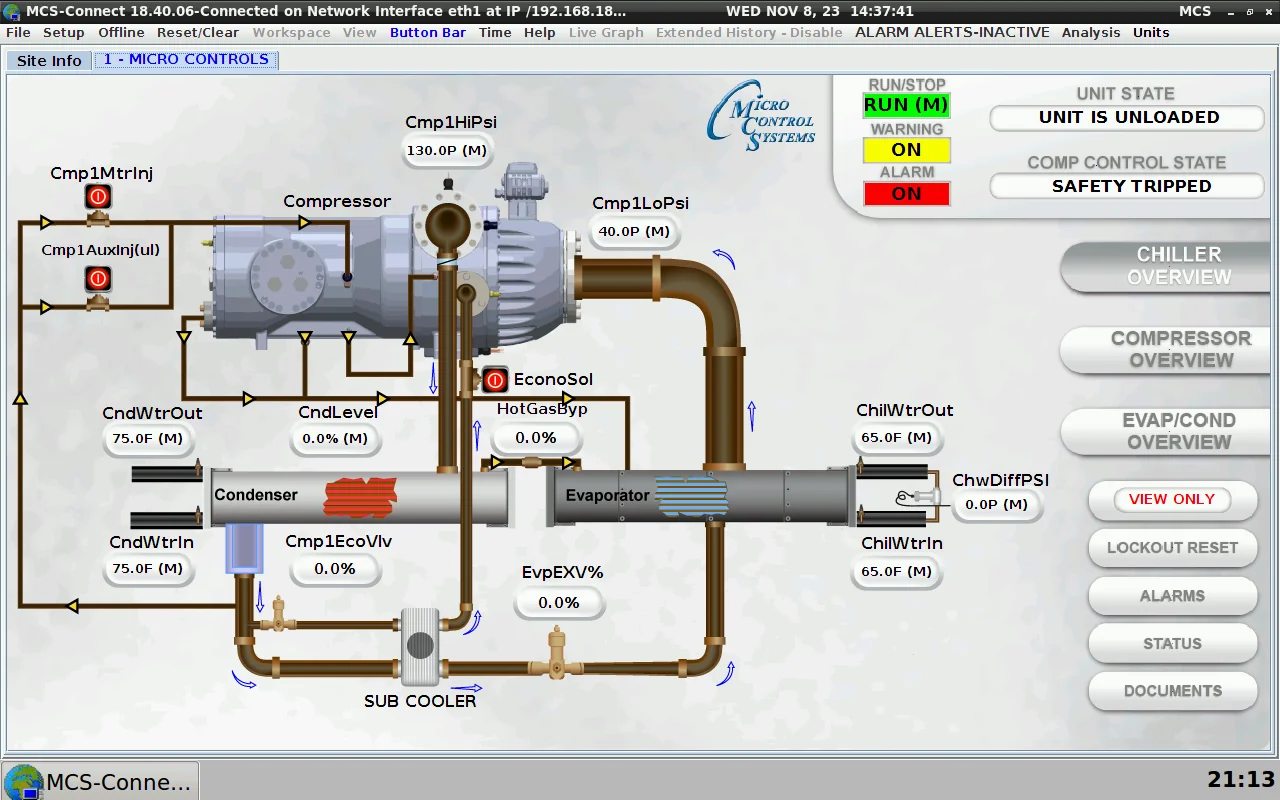

MCS-Graphics sample screen 1
MCS-Graphics sample screen 2
MCS-Graphics sample screen 3
LATEST
MCS-Graphics Builder

Windows installer · sample screens and config included

Version 3.7.0
2,262 KB
Download
Documentation
MCS-Graphics-Builder Manual MCS-Touchscreen and Graphics Manual APP131 — Using WinSCP with the MCS-Graphics-Builder APP135 — Installing Graphics Touchscreen APP126 — Setting Graphics Lock Feature

MCS-CONFIG

Configuration for MCS-8 & MCS-MAGNUM Controllers

MCS-Config is a Microsoft Windows® program that communicates with MCS-8 and MCS-MAGNUM microcontrollers. Communications can be either local or remote via a modem.

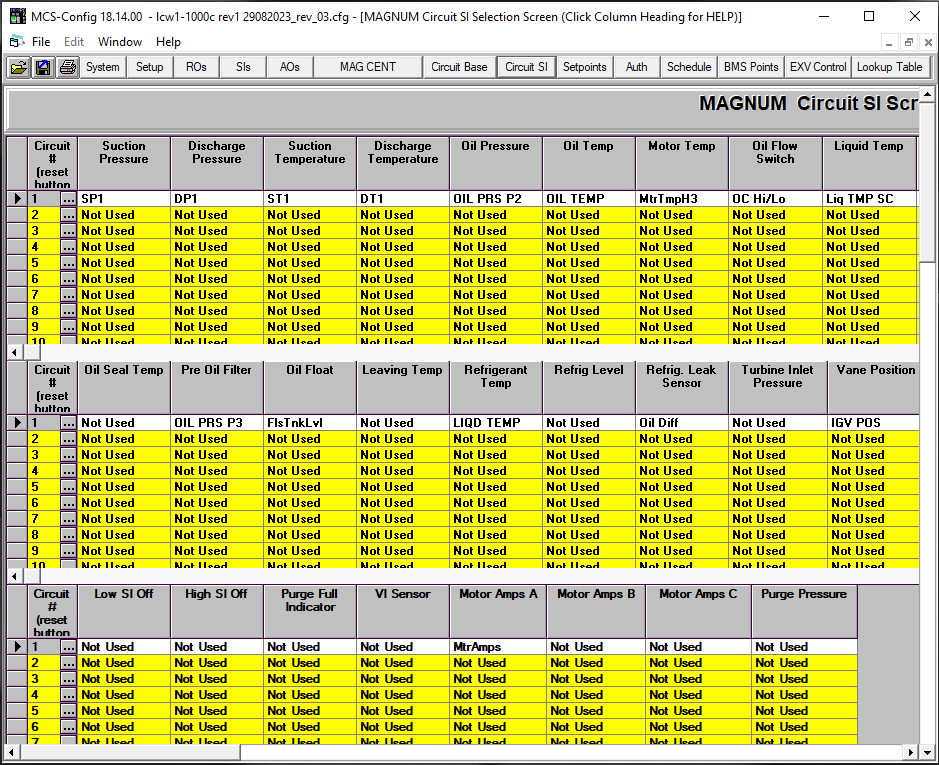

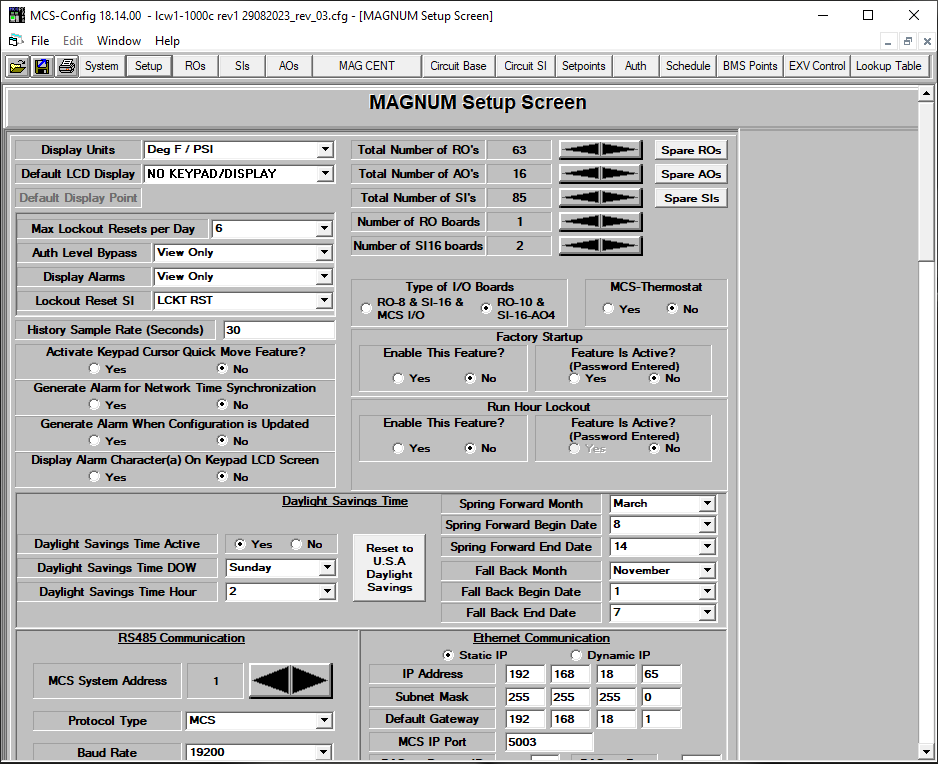

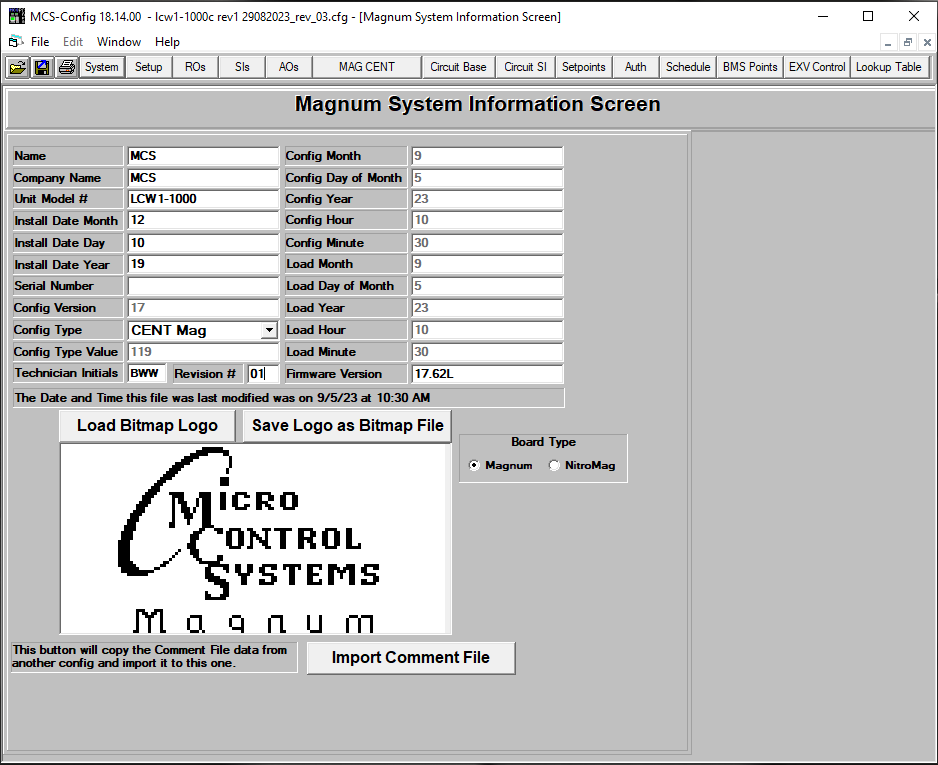

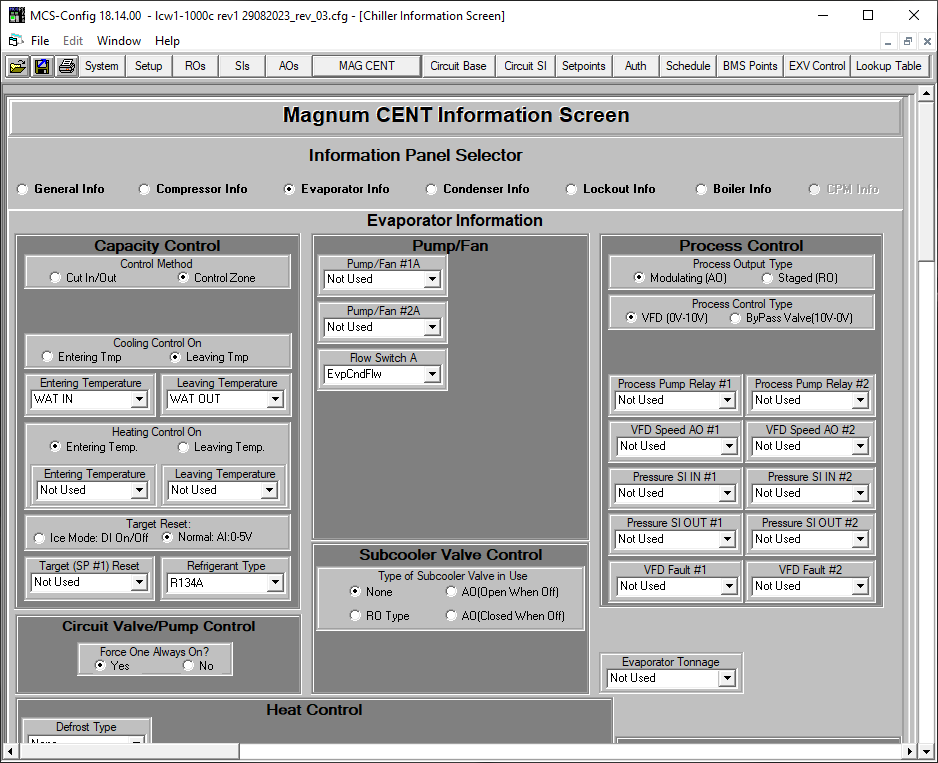

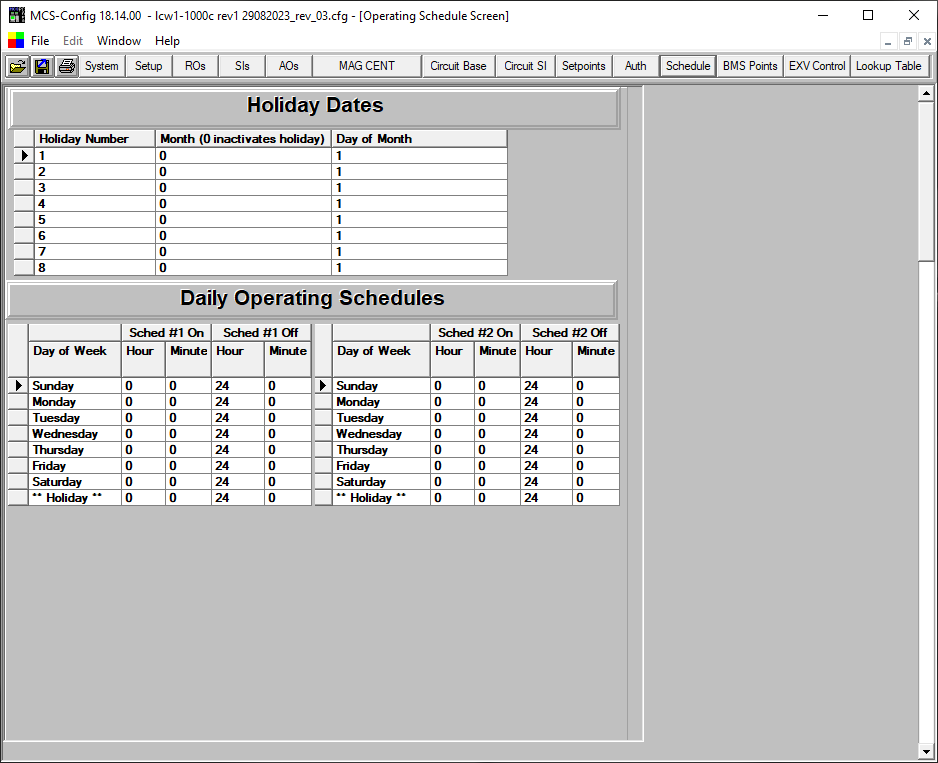

The screens shown here demonstrate the interfaces for System, Setup, MAG-CENT, Circuit SI, and Schedule configuration.

MCS-Config Spec Sheet

Downloads

LATEST
MCS-Config

Windows installer

Version 19.01.22
14,775 KB
Download
BETA
MCS-Config Beta

Pre-release preview

Version 19.01.51
14,848 KB
Download
MCS-Example Config Files

Sample configuration files to get started

Version 2.8.21
17,601 KB
Download
Release Notes

Version history & changelog

Download

Please Note: Each installer above is the latest official release. Download (Save) the file to your computer and then run it by clicking on the downloaded file and following the on-screen instructions.

MCS-BMS-GATEWAY TOOLS

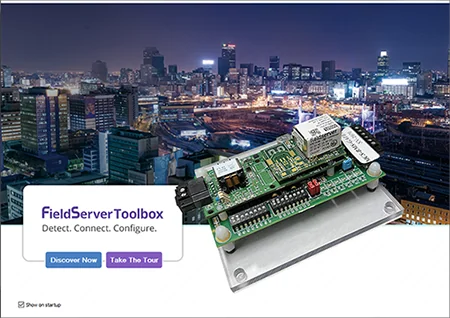

Field Server Toolbox

Configure & Monitor the MCS-BMS-GATEWAY

FieldServer Toolbox contains the software and manuals needed to configure, analyze, and monitor the MCS-BMS-GATEWAY.

LATEST
FieldServer Toolbox
Version 1.08aC · Windows installer
Download

Documentation

MCS-BMS-GATEWAY Spec Sheet
MCS-BMS-GATEWAY Startup Guide
MCS BMS Communication Manual
MCS-BMS-GATEWAY Wiring Diagram
APP085 — Programming a MCS-BMS-Gateway
APP085-B — Programming N54
APP146 — Siemens BACnet Communication
BMS Requirement Checklist (Fillable)

Please Note: The FieldServer Toolbox file is zipped. Download (Save) the file to your computer, then unzip it to extract the install.msi file. Run the installer by clicking on it and follow the on-screen instructions.

Computer Software Tools

Third-party utilities and viewers commonly used with MCS products.

PDF Reader Icon
PDF Reader
Download
Mobile PDF Reader Icon
Mobile PDF Reader
Download
View Point Icon
ViewPoint
Download
Power Point Icon
PowerPoint Viewer
Download
Any Desk Icon
AnyDesk
Download
FTDI Driver Icon
MCS-USB-RS485 Driver
Download
Autodesk Viewer Icon
Autodesk 360 Online
DWG, STP, IGS Viewer
Open
Cad Faster Quick Step Icon
CadFaster QuickStep 2008
STEP File Viewer
Download
Open VPN Icon
OpenVPN Connect Client
Download
3D Systems Geomagic Icon
3D Systems Geomagic Verify Viewer
32-bit
Download
3D Systems Geomagic Icon
3D Systems Geomagic Verify Viewer
64-bit
Download
