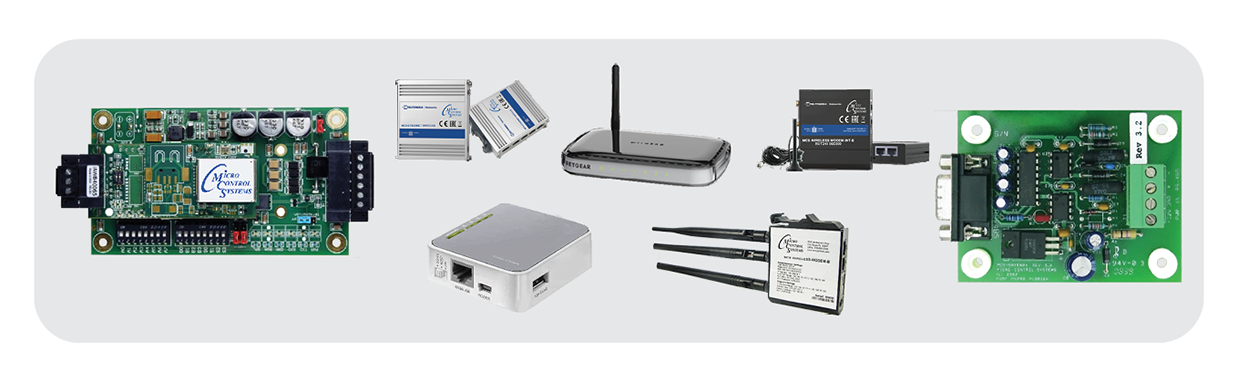

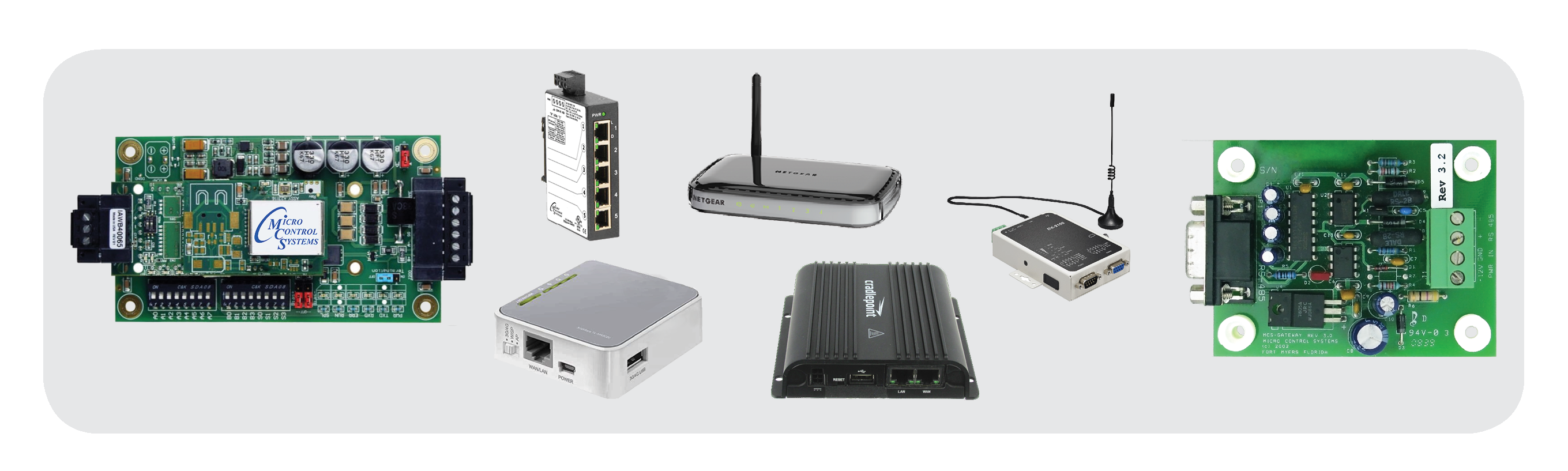

Communications

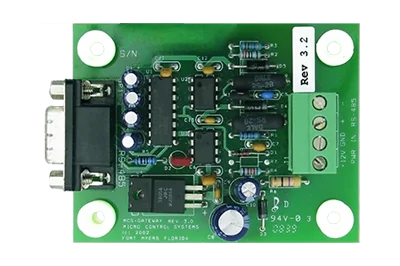

MCS-485-GATEWAY



MCS-485-GATEWAY
Part Number MCS-485-GATEWAY
Description Communications bridge between the signal levels and protocols of RS-485 and RS-232. Supports baud rate of 19.2Kb/sec as standard.
Part Number MCS-485-GWY9600
Description Communications bridge between the signal levels and protocols of RS-485 and RS-232. Supports baud rate of 9.6Kb/sec as standard.
Spec Sheets MCS-485-GATEWAY Spec SheetPDF
Wiring Diagram MCS-485-GATEWAY Wiring Diagram PDF
MCS-485-GATEWAY Wiring Diagram (DWG)
Dimensional Drawings MCS-485-GATEWAY 3D (STP)

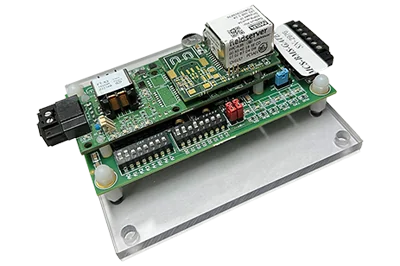

MCS-BMS-GATEWAY

MCS-BMS-GATEWAY
MCS-BMS-GATEWAY
Part Number MCS-BMS-GATEWAY
Description The MCS-BMS-GATEWAY is a microprocessor based communication device that provides translation from BACnet IP to LonTalk, BACnet MSTP, or Johnson Control N2.
Spec Sheets MCS-BMS-GATEWAY Spec SheetPDF
MCS-BMS-GATEWAY BACnet PICPDF
Electrical Drawings MCS-BMS-GATEWAY Schematic PDF
MCS-BMS-GATEWAY Schematic (DWG)
Documents MCS-BMS-GATEWAY Startup GuidePDF
AppNote How to setup an MCS-BMS-GATEWAYPDF
BMS Requirements ChecklistPDF
Product Update MCS-BMS-GATEWAY Part Change NotificationPDF
Configuration Tools MCS-BMS-GATEWAY Install Tools

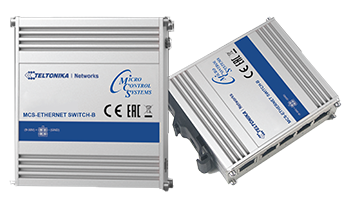

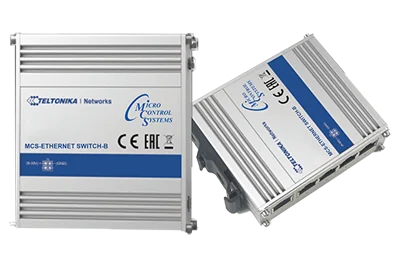

MCS-ETHERNET-SWITCH

MCS-ETHERNET-SWITCH
Part Number MCS-ETHERNET-SWITCH
Description A compact, fast industrial Ethernet switch equipped with five 10/100 Base-TX ports and power supply.
Spec Sheets MCS-ETHERNET-SWITCH Spec SheetPDF
Drawings MCS-ETHERNET-SWITCH Wiring DiagramPDF

MCS-ROUTER

MCS-ROUTER
Part Number MCS-ROUTER
Description 5-port Wireless-G router programmed for port forwarding that allows connection of up to four MCS-MAGNUM's using only one static IP address. Mounted in plastic box. Must fill out the MCS-ROUTER Program Request Form.
Spec Sheets MCS-ROUTER Spec SheetPDF

MCS-POCKET-ROUTER / MCS-BRIDGE

MCS-POCKET-ROUTER
Part Number MCS-POCKET-ROUTER
Description The DWL-G730AP is a portable wireless router delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps.
Spec Sheets MCS-POCKET-ROUTER Spec SheetPDF
DWL-G730AP OEM Spec SheetPDF
MCS-BRIDGE
Part Number MCS-BRIDGE
Description The DWL-G730AP is a portable wireless router delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps.
Spec Sheets MCS-BRIDGE Spec SheetPDF
DWL-G730AP OEM Spec SheetPDF

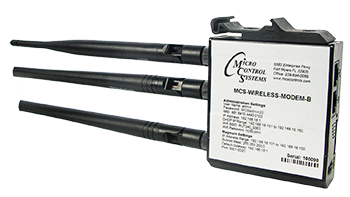

MCS-WIRELESS-MODEM

MCS-WIRELESS-MODEM
MCS-WIRELESS-MODEM
Part Number MCS-WIRELESS-MODEM
Description Used for wireless internet connection to MCS-Magnum. Wireless cradlepoint with one year subscription of 250MB per month.
Spec Sheets MCS-WIRELESS-MODEM Spec SheetPDF
Installation MCS-WIRELESS-MODEM Installation SheetPDF
Documents APP112 - ANTENNA BOOSTERPDF

MCS-MODEM

MCS-MODEM
Part Number MODEM
Description External modem pre-programmed for use with MCS micro controllers (includes MCS-M9-M25 cable, RJ-11 phone cable and 120vac to 7.5vdc AC Adapter with surge suppressor)
Part Number MODEM-230
Description External modem pre-programmed for use with MCS micro controllers (includes MCS-M9-M25 cable, RJ-11 phone cable and 90-264vac to 7.5vdc AC Adapter)
Part Number MODEM-MAG-115
Description External modem pre-programmed for use with MCS-MAGNUM micro controllers (includes MCS-485-GATEWAY, MCS-M9-M25 cable, RJ-11 phone cable and 120vac to 7.5vdc AC Adapter with surge suppressor)
Spec Sheets MODEM-MAG-115 Spec SheetPDF
Part Number MODEM-MAG-230
Description External modem pre-programmed for use with MCS-MAGNUM micro controllers (includes MCS-485-GATEWAY, MCS-M9-M25 cable, RJ-11 phone cable and 90-264vac to 7.5vdc AC Adapter)
Spec Sheets MODEM Spec SheetPDF
Installation Installation Sheet for ModemsPDF
