Miscellaneous Items


Part Number Description
PDFMCS-SHIELDWIRE-GROUNDING-KIT MCS-SHIELDWIRE-GROUNDING multi-terminal splicing connector

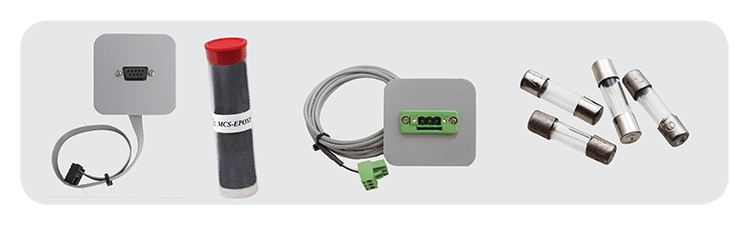

PDFMCS-RS232-EXTENDER Extension cable for the RS-232 port. 9-pin male to 9-pin female.
PDFMCS-RS485-EXTENDER Extension cable for the RS-485 port on the Magnum.
PDFMCS-ACTUATOR The MCS-ACTUATOR is used in conjunction with MCS controls as a replacement for certain model stepper motor actuators.
PDFMCS-EPOXY Steel reinforced epoxy putty stick
PDFMCS-CARRIER-5K-ADAPTER MCS-CARRIER-5K-ADAPTER allows the MAGNUM to monitor the temperature of the motors for proper operation.
PDFMCS-RTHD-OIL-SENSOR-KIT MCS-RTHD-OIL-SENSOR-KIT is used in the refrigeration systems in compressors to maintain a desired level.
25-004 10amp 120volt 5 x 20mm glass tube fuse
25-005 2amp 120 volt 5 x 20mm glass tube fuse
25-007 1amp 120 volt 5 x 20mm glass tube fuse
25-008 5amp 120 volt 5 x 20mm glass tube fuse
25-010 500ma 120 volt 5 x 20mm glass tube fuse
25-011 6.3A 250V 5x20mm fast-acting glass tube fuse (MCS-Magnum, RO10)
25-018 500mA 250V TRS subminiature fuse (MCS-Magnum, RO10, SI16-AO4, Modbus)
25-024 5amp mini auto fuse
32-004 65176 (RS-485) chip
32-006 RS-232 chip
33-000 Blank 27C512 64K EPROM
33-002 Blank 2864 8K EEROM
40-022 Mini Berg Jumper (2 position jumper)
41-000 RIA 3 position terminal header (top part with screw terminals for sensor input, analog out, etc. bases.)
41-006 AUGAT 6DTB 3 position terminal header (top part with screw terminals for relay output and power input connector bases.)
41-007 MAGNUM 3 position terminal header (top part with screw terminals for relay output and power input connector bases. With protective flip top cover.)
41-036-3 MAGNUM 3 position vertical terminal header (top part wih screw terminals for relay output and power input connector bases.
41-038-3 Tyco 3 position 5mm terminal header (top part with screw terminals for sensor input, analog output, etc. bases)
91-294 4/40 Nylon acorn nut
LCD-BL-KIT Backlit LCD assembly with mounting hardware
MCS-100 OHM 100-ohm resistor for use with dry contact on sensor inputs.
MCS-24-VOLT-115 115 to 24vac transformer
MCS-24-VOLT-230 230 to 24vac transformer
MCS-M25 MCS 9 pin (male) to Modem 25 pin (male)
MCS-MANUAL Although printed manuals may be ordered from MCS for a fee, a selection of manuals may be downloaded free of charge from our Literature page.
MCS-PC25 MCS 9 pin (male) to PC 25 pin (male)
MCS-PC9 MCS 9 pin (male) to PC 9 pin (male)
MCS-SNUBBER External snubber suppression network
RS-485 PROTECT Surge protector for RS-485 communication lines
